| Basic Information | |
| Brand | Ugreen |
| Model | Ugreen AK701 (55397) |
| Form Factor | Desktop |
| Technical & Performance Specifications | |
| SFP Port | No |
| PoE | No |
| OS Supported | Windows, macOS, Linux |
| Body Color | Gray |
| Power Supply | USB-C, 5.0V - 4.0A Max |
| Resolution Support | Up to 8K @ 60Hz |
| Color Depth | 24-bit / 30-bit / 36-bit |
| Pixel Formats | RGB / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0 |
| HDCP Version | HDCP 2.3 (backward compatible) |
| Functions Supported | 3D, HDR10, HDR10+, VRR |
| Supported Formats | LPCM / DTS / DSD |
| Channel Support | 2.0 / 2.1 / 5.1 / 7.1 channels |
| Max Audio Sampling Rate | 24-bit / 192kHz |
| Standard | USB 3.0 |
| Transfer Speed | Up to 5Gbps |
| Input | USB-C, 5.0V ⎓ 4.0A Max |
| Multiple input/output options | 4 HDMI inputs, 3 USB-A, 1 USB-C output, and Mini USB for flexible device connections. |
| Warranty Information | |
| Warranty | 1 Year Brand Warranty |

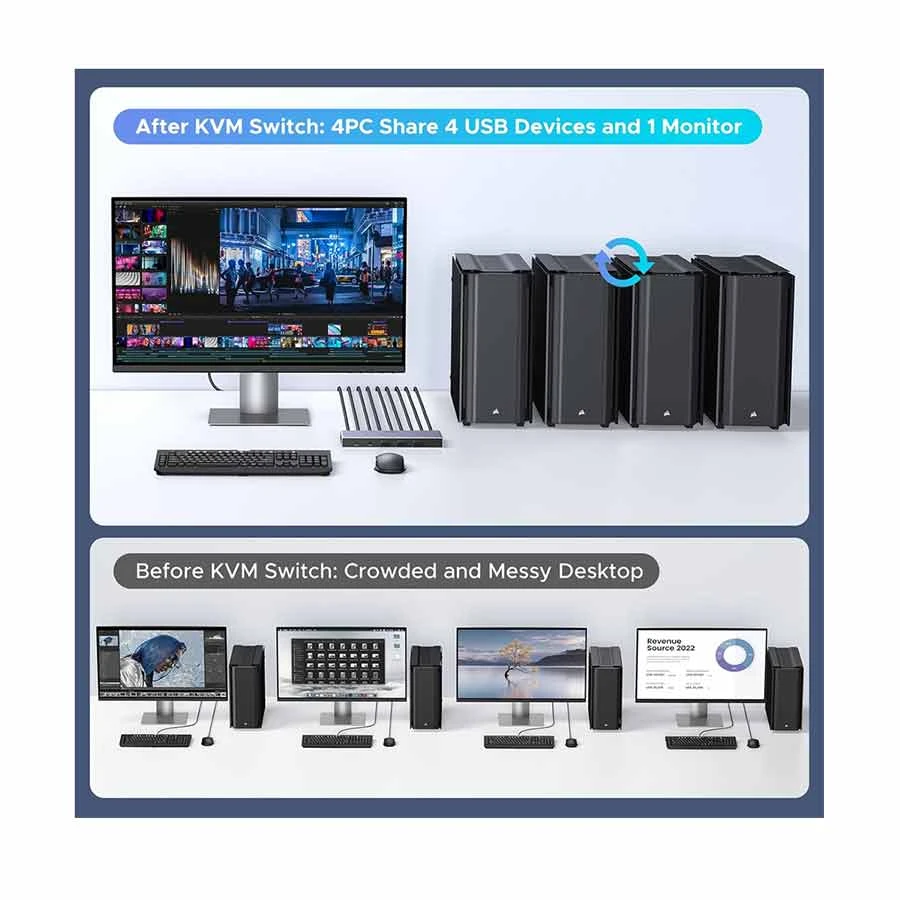

UGREEN AK701 (55397) 4 In 1 Out HDMI KVM Switch is an ideal solution for individuals who want to switch multiple computers with a single monitor, keyboard, and mouse. It has 4 HDMI and USB-C inputs, and 1 mini USB input, which makes it easy to connect more than one computer or media source. The output includes 1 HDMI port, 3 USB-A ports, and 1 USB-C port, making it convenient to share displays and USB peripherals between devices.
It features up to 8K at 60Hz resolution with clear image quality. Both backward and present implementations of HDCP 2.3 are supported, and it is compatible with most of the present displays and content. It can support color depths of 24-bit, 30-bit, and 36-bit and supports pixel formats like RGB, YCbCr 4:4:4, 4:2:2, and 4:2:0. The switch provides complete audio support with LPCM, DTS, and DSD 2.0, 2.1, 5.1, and 7.1 channel outputs. It supports a max audio sampling rate of 24-bit/192kHz, which provides clear, crystal sound clarity for work and entertainment use.

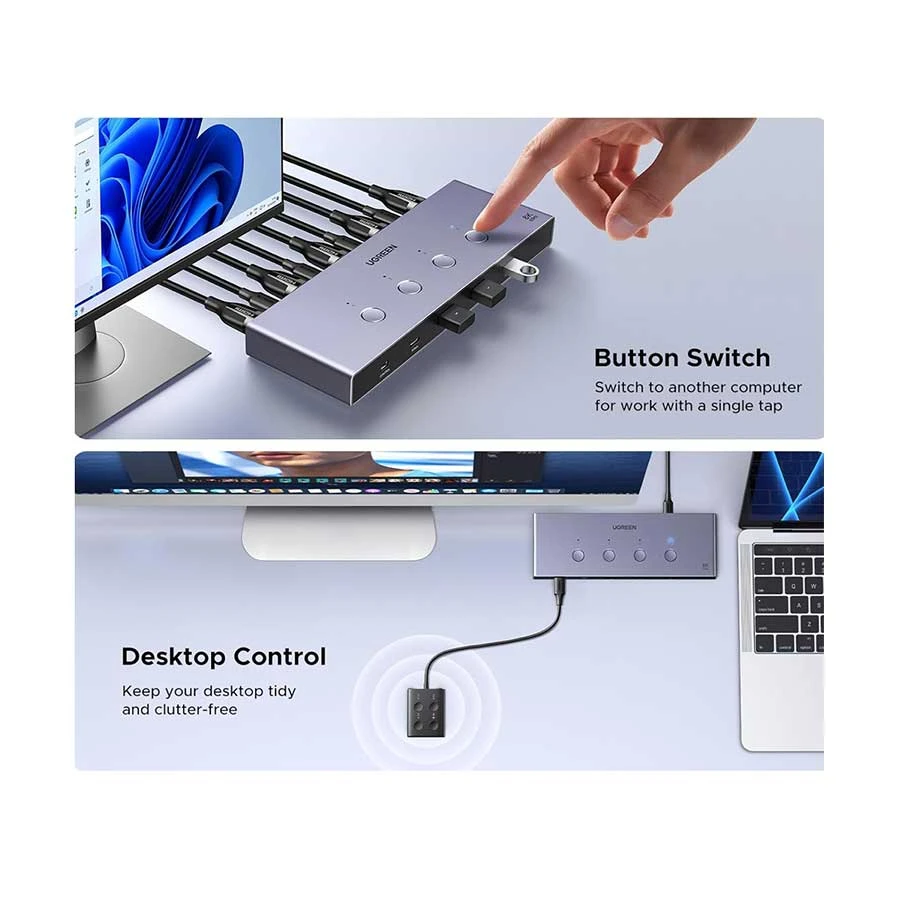

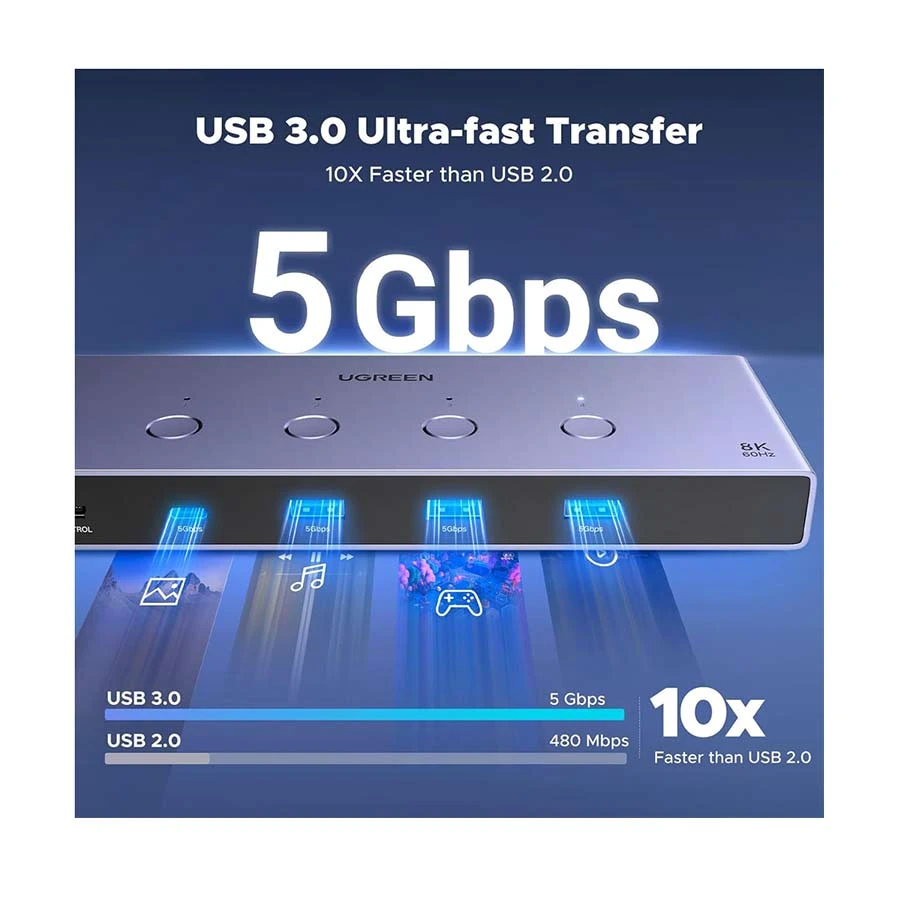

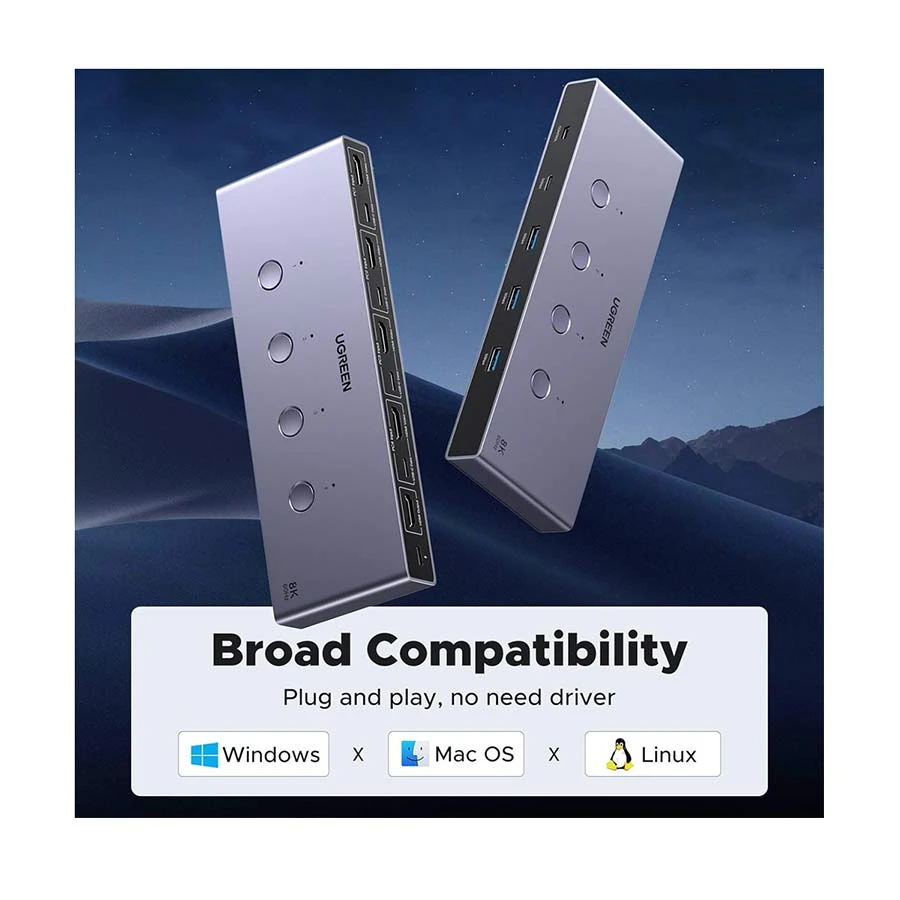

The USB 3.0 protocol supports a maximum of 5Gbps data transfer speeds, and the device also supports 3D, HDR10, HDR10+, and VRR. Inputs can be switched through a physical button or a desktop controller for rapid changes. Power is derived from a USB-C connector (5.0V⎓4.0A Max). The UGREEN AK701 is compatible with Windows, macOS, and Linux operating systems and offers wide platform support. This KVM switch is a handy choice for anyone who wishes to simplify their desktop organization and manage multiple systems effectively.
In Bangladesh, you can get the original Ugreen AK701 (55397) 4 In 1 Out HDMI KVM Switch from AjkerShop. We have a large collection of the latest UGREEN Products available for purchase. Order online through our website to get authentic products with fast Cash on Delivery nationwide. The Ugreen AK701 (55397) 4 In 1 Out HDMI KVM Switch comes with an official 1 Year Brand Warranty.
The latest price of Ugreen AK701 (55397) 4 In 1 Out HDMI KVM Switch in Bangladesh is 13990৳. You can buy the Ugreen AK701 (55397) 4 In 1 Out HDMI KVM Switch at best price from our website with an official 1 Year Brand Warranty and fast cash on delivery across Bangladesh.
