| Basic Information | |
| Brand | Ugreen |
| Model | Ugreen US316 (20478) |
| Package Content | Ugreen US316 (20478) USB Type-C Male to Male Cable |
| Transmission & Connectivity | |
| Port Side-1 | USB Type-C Male |
| Port Side-2 | USB Type-C Male |
| Interface(s) | USB Type-C Male |
| Data Transfer Rates | 480Mbps |
| Power | 5A |
| Charging Watt (Max.) | 100W |
| Product Name | UGREEN USB-C PD Fast Charging Cable |
| Signal Wires | 30 AWG (19/0.06TS + 250D) * 1P (white/green) |
| CC Wires | 30 AWG (19/0.06TS + 250D) * 2C (blue/yellow) |
| Power Wires | 24 AWG (41/0.08TS + 250D), 16/0.08TS + 250D * 3C |
| Outer Braiding | F (500D nylon strands), ALC silver/TC woven mesh |
| Before Weaving | 3.9 ± 0.1 mm |
| After Weaving | 4.4 ± 0.15 mm |
| Core | Tin-coated copper |
| Coating | TPE |
| Shielding | Aluminum foil + braided |
| 0.25–1m | 6 cores + 3 ground |
| 1.5–2m | 6 cores + 5 ground |
| 3m | 6 cores + 6 ground |
| Current Capacity | Up to 5A |
| Data Transfer | USB 2.0, up to 480 Mbps |
| Charging Power | Up to 100W (20V/5A Max) |
| Charging Protocols | PD, SCP, PPS |
| Insertion life | 10,000 times |
| Bending Test | 3,000 swings at ±90°, 300g weight |
| Flame Retardant Grade | GB/T 5169.23-2008 |
| Operating Temp | 0°C to 45°C |
| Storage Temp | -15°C to 70°C |
| Certifications | RoHS 2.0, REACH, SVHC, POPs, California 65, TSCA, China RoHS |
| Physical Specifications | |
| Length. | 0.5 Meter |
| Color | Black |
| Length | 0.5M |
| Warranty Information | |
| Warranty | 1 Year Brand Warranty |

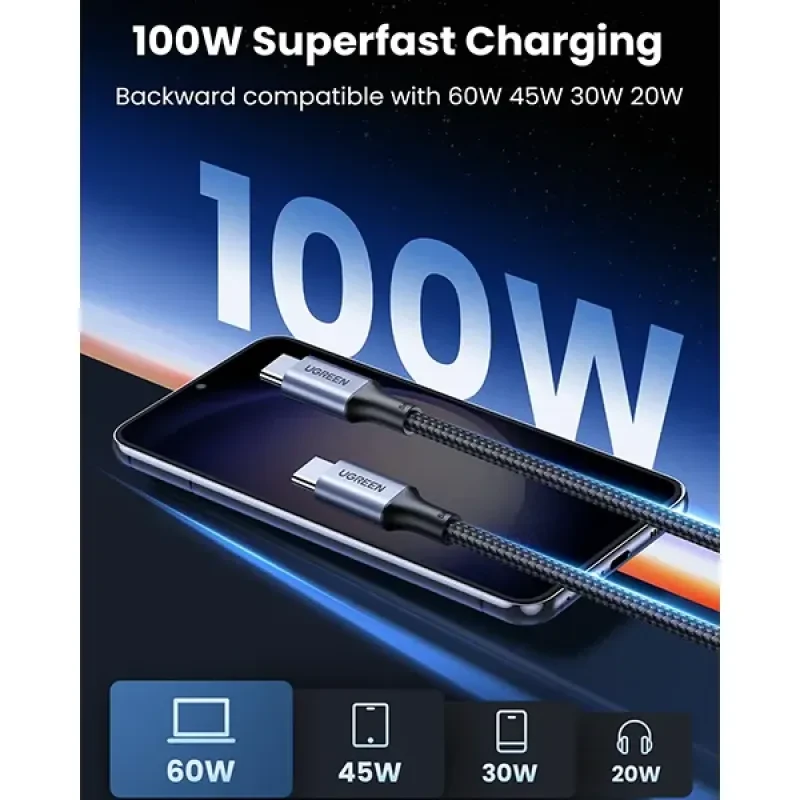

UGREEN US316 (20478) USB-C to USB-C PD Fast Charging Cable - 0.5M is intended for quick and secure charging of a wide range of USB-C devices. It supports a power output of up to 100W and follows PD, SCP, and PPS protocols to meet the requirements of phones, tablets, laptops, and other devices for quick and stable charging. The cable makes use of tin-coated copper with TPE outer casing and black and silver woven mesh for strength. The internal structure of the cable is well planned: 0.25 to 1 meter has 6 cores and 3 floors, longer lengths, such as 1.5–2 meters have 5 floors, and 3 meters has 6 floors. The cable is able to transfer 480 Mbps with the USB 2.0 standard, perfect both for charging and syncing.

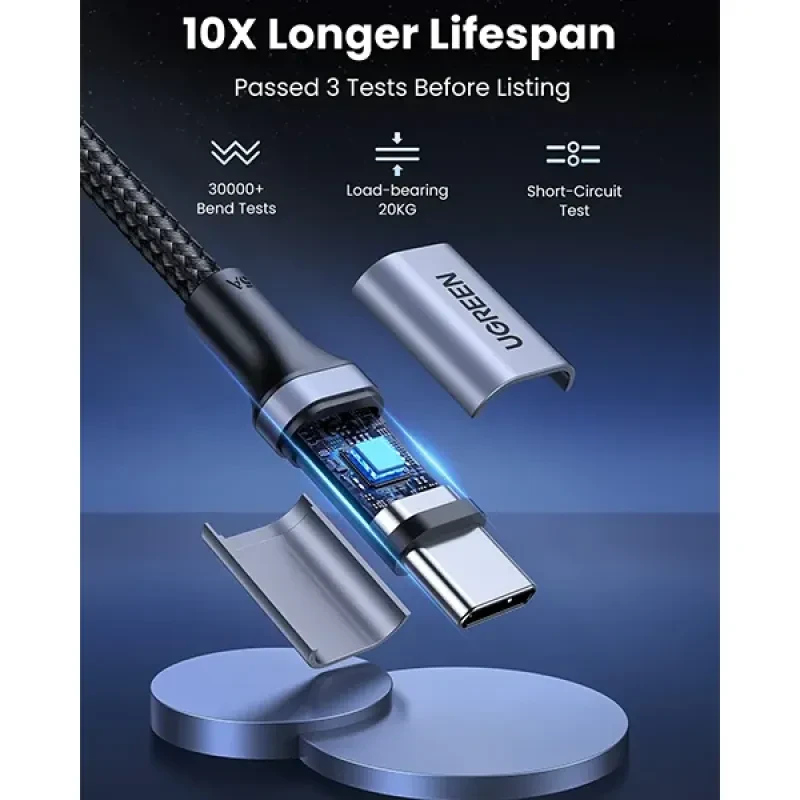

The black rubber core, the gold-plated 15U" terminals, and the nickel-plated stainless steel shell are all features of the male-type USB-C 2.0 connectors. The plugs contain a 10nF capacitor and a HUSB332A chip for intelligent current control. The cable diameter is 3.9±0.1mm before weaving and 4.4±0.15mm after weaving, with stable build quality that withstands 10,000 plug-in tests and 3,000 swing tests (±90°, 300g, 30 times/min).
The cable supports a wide voltage range—5V/3A, 9V/2A, 9V/3A, 15V/2A, 15V/3A, 20V/3A, and 20V/5A—and is therefore perfect for high-power devices. The cable is also in compliance with international environmental and safety standards, including RoHS 2.0, REACH, SVHC, POPs, California 65, TSCA, and China RoHS. It is flame retardant according to GB/T 5169.23-2008 standards. The working temperature is 0~45°C while the storage range is -15~70°C. This makes it a great and long-lasting option for daily charging purposes.
In Bangladesh, you can get the original Ugreen US316 (20478) USB-C to USB-C PD Fast Charging Cable from AjkerShop. We have a large collection of the latest UGREEN Products available for purchase. Order online through our website to get authentic products with fast Cash on Delivery nationwide. The Ugreen US316 (20478) USB-C to USB-C PD Fast Charging Cable comes with an official 1 Year Brand Warranty.
The latest price of Ugreen US316 (20478) USB-C to USB-C PD Fast Charging Cable in Bangladesh is 450৳. You can buy the Ugreen US316 (20478) USB-C to USB-C PD Fast Charging Cable at best price from our website with an official 1 Year Brand Warranty and fast cash on delivery across Bangladesh.
